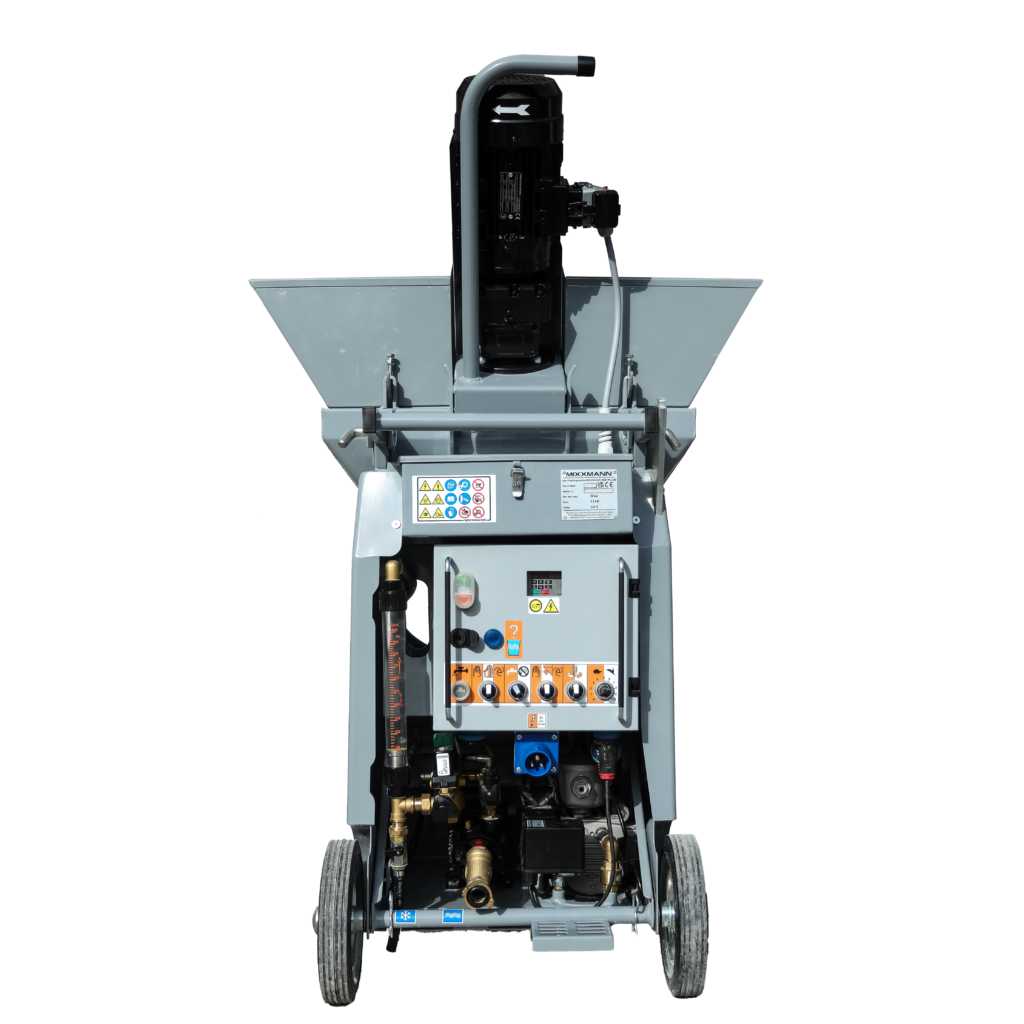

MixxMann S3 240v Rendering Machine

The Mixxmann S3 is a versatile and efficient plastering/rendering machine designed for professional plastering/rendering tasks, especially suited for larger projects. It’s engineered to handle a variety of plastering/rendering materials such as cement-based mortars, plasters, render, and even insulation materials, making it highly adaptable for different job site requirements.

Overview

Key Features:

1. High Performance: The Mixxmann S3 offers a powerful motor system that provides consistent mixing and pumping, allowing for smooth application of plaster/render or other materials over large surfaces quickly and efficiently.
2. Ease of Use: It is user-friendly, with intuitive controls that make it easy for operators to adjust settings as needed. The machine can be operated by one or two workers, optimizing labour efficiency using the extension hopper.
3. Material Compatibility: Capable of handling various mixes including lightweight mortars, Monocouche Renders, traditional plasters, and thermal insulation materials, making it ideal for diverse construction needs.
4. Durability: Built with high-quality materials, it ensures longevity and withstands the rigorous demands of construction sites.
5. Compact Design: Despite its powerful capabilities, the S3 is compact, making it easy to transport and fit in tight workspaces.
6. Customizable Settings: The machine allows for adjustable flow rates through the variable speed function, enabling precise control over the application of the plastering/rendering materials to achieve desired finishes.

Benefits:

• Increased Productivity: By automating the mixing and pumping process, the Mixxmann S3 significantly reduces manual labour and time required for plastering/rendering.
• Consistent Results: Ensures an even, uniform application of material, reducing the risk of inconsistencies or defects in the finish due to the controlled mixing capabilities.
• Versatile Application: Whether working on walls, ceilings, or intricate surfaces, the S3 adapts to various types of plastering/rendering tasks with ease.

This machine is especially beneficial for contractors who want to boost productivity on small to medium to large-scale projects.

Standard Equipment:

• 3/8″ air hose, 10m (with GEKA connections): 1 pc
• 25mm x 10m Material Hose: 1 pc
• GEKA gaskets: 3 pcs
• 25mm gaskets for MT-25 connection: 2 pcs
• 30mm washing balls for 25mm hose: 2 pcs
• ¾” GEKA Connection for External Tap: 2 pcs
• Cleaning tool: 1 pc
• Cleaning shaft: 1 pc
• Mixing Shaft: 1 pc
• Spray Gun: 1 pc
• Cleaning tool for mortar gun: 1 pc
• Key for water reducer disassembly: 1 pc
• Template gauge for gun nozzle: 1 pc
• 230V, 10m rubber-insulated extension cable, 3×2.5: 1 pc
• Control cabinet key: 1 pc
• 13-19mm open-end wrench: 1 pc
• Rotor and Stator B 4-2 L: 1 pc
• 20m Water Hose and Barrel
• 25mm Mortar Pressure Gauge

• Extension Hopper: Yes

• MIXXMANN S3 plastering station instructions: Yes

 Specification:

Dimensions, weight, capacity:

• Width: 640mm
• Height: 1480mm
• Length: 900mm
• Dry mixture filling height: 930mm
• Inlet hopper capacity: 70l
• Additional hopper capacity: +70l
• Weight: 135kg

Power:

• Electricity consumption: 3.12kW
• Worm pump drive: 2.2kW
• Water pump: 0.5kW
• Compressor: 0.42kW
• Rated voltage: 230 V
• Circuit breaker: 16 A
• Voltage control: 42 V
• Water fitting with a flow meter: 100-1500 L/h
• Pump drive speed: 80-490 rpm
• Performance: 3-14 l/min, (Depending on the composition of the mortar and type of screw pair)
• Grain size: max 3mm
• Pumping distance: 20m
• Max pressure: 20 bar
• Work temperature conditions: from +3 to +45°С
• Relative humidity: up to 80%
• Noise level: 78±1Db

Built-in

• Built-in water pump: Yes
• Built-in Air Compressor: Yes
• Built-in vibrator: Yes
• Built-in additional filter for fine water purification: Yes
